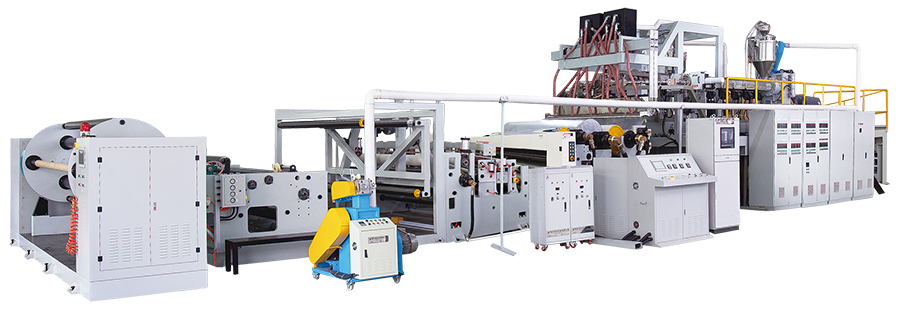

Coextrusion Line, Extrudes Multi-layer Cast Film

•

•

Material: CPE

Coextrusion is a plastic extrusion process involving the combination of materials with two textures. For example, the equipment can produce a roll of plastic materials with a smooth glossy side and a matte texture on the other. This production line is suitable for three-layer co-extrusion CPE film and three-layer co-extrusion CEVA film. The equipment delivers outstanding reliability and cost-efficiency.

• Film width range: 1600-2800mm
• Film thickness range: 0.04-0.30mm
• Maximal mechanical speed: 250m/min
• Production speed: 180m/min

• Special screw design which greatly improves the plasticizing ability and mixing effect so as to ensure high output.
• The automatic die head and automatic thickness gauge controlled by APC ensures high accuracy and operating convenience.
• The cooling roller is designed with special spiral-flow channels which can ensure the reliability and stability of forming and cooling processes even during high speed production.
• The production line will automatically recycle film scraps to minimize production costs and reduce waste.

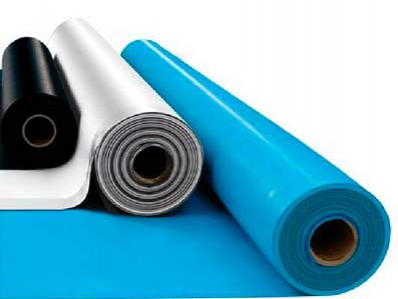

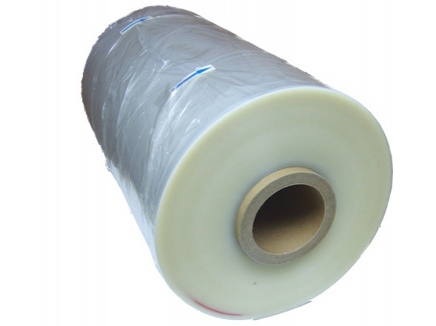

It can be widely used for the production of single-use daily necessities, medical supplies, medical packaging, chemical packaging, agricultural product packaging, food packaging, etc.
